Why Is a Vacuum Pump Set Mandatory for On-Site Transformer Installation?

Writer： Kaiqian Oil Purifier Release time：2026-06-01 12:05 Clicks：

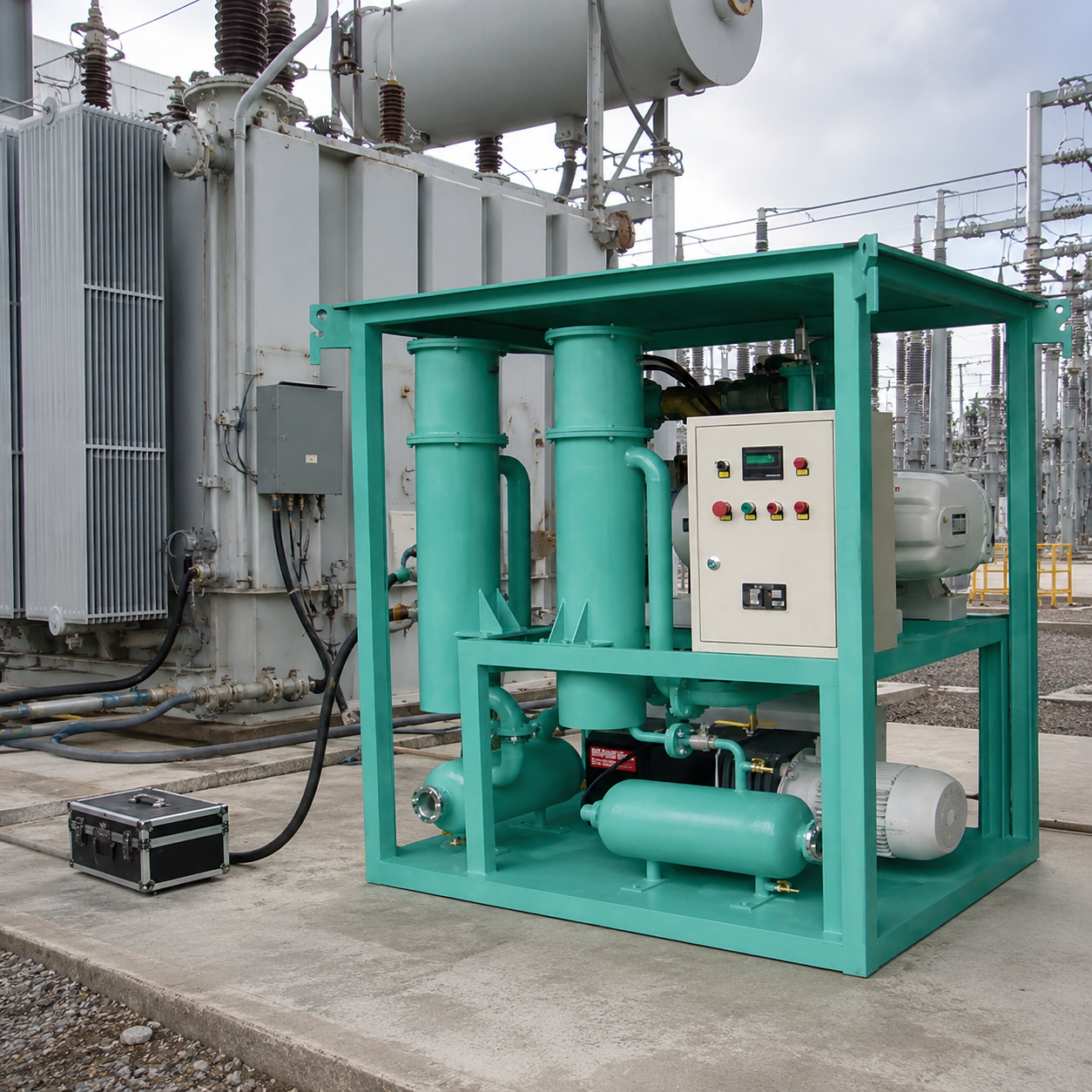

During the on-site installation, commissioning, or major overhaul of high-voltage power transformers (110kV, 220kV, 500kV, and above), a high-capacity vacuum pump set (or double-stage vacuum pumping system) is a non-negotiable piece of equipment on the job site.

For project managers outside the core electrical engineering field, a common question arises: Since the transformer tank is sealed and the oil regeneration manufacturer provides clean oil, why do we need to connect large vacuum lines and run heavy pumping equipment for dozens of hours before and during oil filling?

This process is a strict requirement governed by dielectric physics and the thermal behavior of solid insulation materials exposed to atmosphere. Here is the engineering breakdown of why on-site vacuuming is critical to transformer safety.

1. Eliminating the "Water Bridge Effect": Extracting Deep Moisture from Solid Insulation

A large power transformer contains not only tons of insulation oil but also a massive volume of solid cellulose insulation materials, such as pressboards, insulating paper, and laminated wood. These wood-fiber materials are highly hygroscopic, meaning they absorb moisture like a sponge.

• Atmospheric Exposure: During on-site assembly, core inspections, or bushing installations, the transformer internals are inevitably exposed to ambient air for brief periods. Even if the relative humidity on-site meets standard installation guidelines, the insulation paper rapidly absorbs invisible moisture from the air.

• Low-Pressure Flash Evaporation: Moisture trapped deep within the pores of the paper insulation will not naturally evaporate under normal atmospheric pressure. When the transformer is energized at high voltages, this micro-moisture causes a catastrophic drop in dielectric strength.

• The Solution: A vacuum pump set utilizes the thermodynamic principle that the boiling point of water drops as environmental pressure decreases. By dropping the absolute pressure inside the transformer tank to a deep vacuum, the moisture deep within the insulation boards flashes into water vapor and is continuously sucked out of the system. This is the only reliable method to dry out the solid insulation on-site.

2. Preventing Gas Trapping and Partial Discharge During Oil Filling

Once the transformer core and insulation paper are completely dried, the next critical step is filling the tank with dozens of tons of transformer oil. At this stage, the vacuum pump set acts as a system stabilizer.

If you attempt to pump oil into the transformer tank under normal atmospheric pressure, air becomes trapped. Because the internal structure of a transformer is incredibly complex—with tightly wound coils, baffles, and layered pressboards—the incoming oil traps air pockets in dead zones, corners, and the microscopic pores of the paper insulation.

• The Danger of Air Bubbles: Under high-voltage electric fields, the dielectric constant of air is much lower than that of insulation oil. Consequently, electric field lines concentrate heavily inside these tiny trapped air bubbles. Because air has a low breakdown strength, these bubbles experience Partial Discharge (PD) immediately upon commissioning. Over time, continuous partial discharge burns the surrounding insulation paper, resulting in an irreversible inter-turn short circuit or a catastrophic explosive failure.

• The Vacuum Oil Filling Logic: Before oil injection, the vacuum pump set evacuates all air from the transformer tank, leaving the core and windings in a deep vacuum. When the oil is introduced under this negative pressure, it flows completely unobstructed into every micro-pore and corner, eliminating the root cause of bubble formation.

3. Overcoming Material Outgassing: Why High Pumping Speed Matters

A common mistake made by field installation teams is using a small, underpowered vacuum pump. They assume that as long as the vacuum gauge needle moves toward a negative reading, the job is done.

In reality, large transformer tanks have massive internal volumes, and tons of insulation paper will continuously release massive amounts of water vapor and volatile gases once subjected to deep vacuum—a phenomenon known as material outgassing.

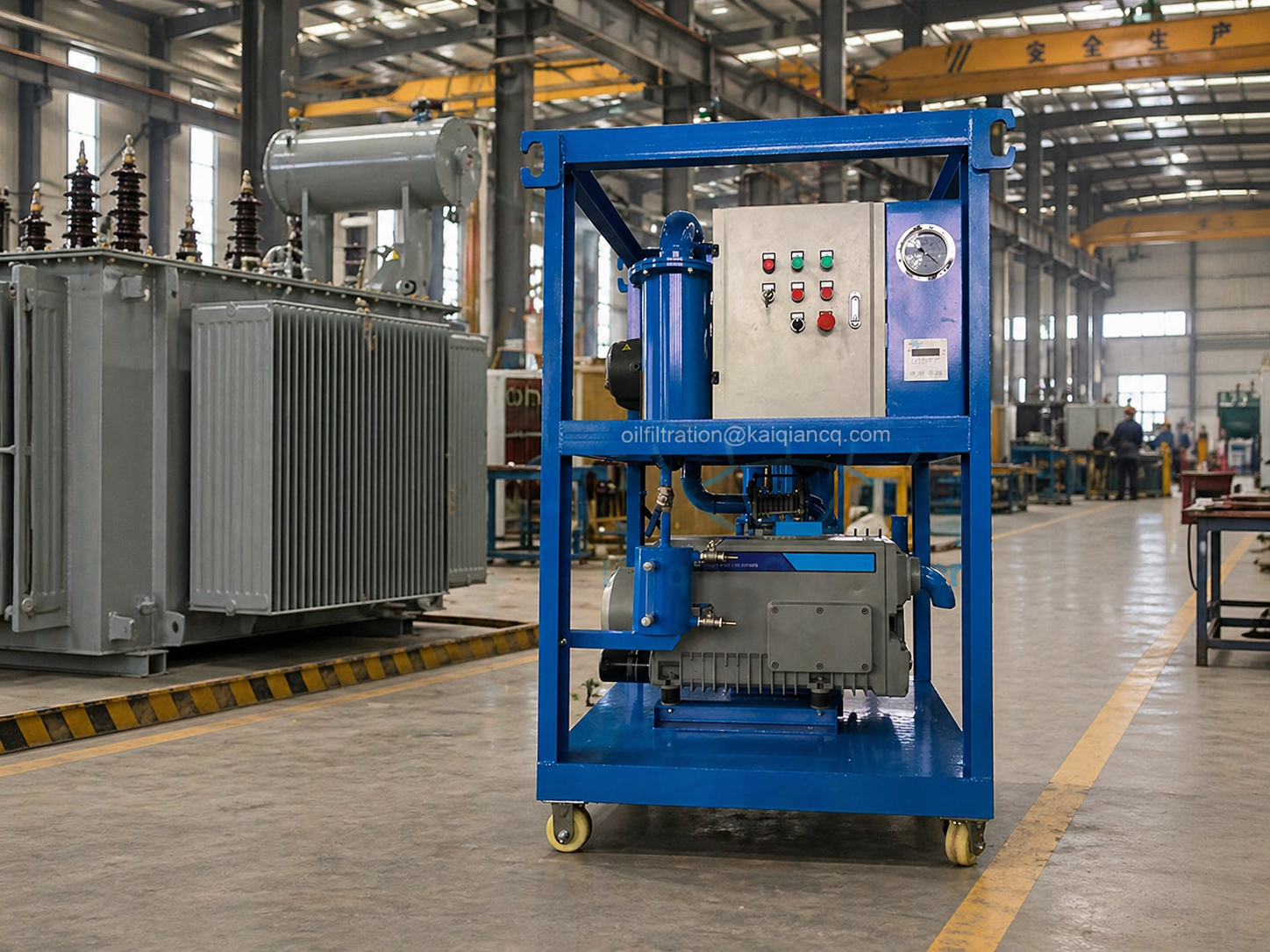

If the pumping speed (measured in Liters per Second, L/s) of your vacuum equipment is too low, the pump cannot keep up with the rate at which the insulation material releases gas. The internal pressure will stall at a mediocre level, never reaching the true deep vacuum required by grid specifications. Therefore, installation sites must utilize high-capacity double-stage vacuum pump sets (Roots blower + backing pump combination) to overcome outgassing and achieve the target vacuum level within the project schedule.

4. Protecting Multi-Million Dollar Assets

High-voltage power transformers are the most expensive assets in substations and power plants. Their operational stability is paramount.

• Skipping a proper vacuum routine to save time or using low-cost, low-vacuum equipment often leads to field test failures or premature insulation breakdown within the first year of operation.

• A transformer failure results in months of downtime, heavy grid penalties, and massive financial loss.

Using a high-performance vacuum pump set—equipped with safety interlocks like automatic electromagnetic vacuum safety valves to prevent vacuum pump oil back-sucking during unexpected power outages—is a necessary investment in asset longevity.

Conclusion

High-voltage power engineering tolerates zero compromises when it comes to micro-bubbles or moisture. On-site vacuum pump sets are the only engineered solution to force moisture out of solid insulation and prepare the transformer for flawless vacuum oil filling. As an established oil filtration and oil regeneration manufacturer, we design our vacuum pump sets and double-stage vacuum oil purifiers to deliver the high pumping speeds and deep vacuum levels essential for securing maximum dielectric stability before the transformer ever goes online.
