Introduction of clay decolorization oil purifier

Writer： Kaiqian Oil Purifier Release time：2022-02-18 14:15 Clicks：

Clay decolorization is a kind of precision and high efficiency filtration equipment that separates the decolorizing agents such as clay or activated carbon used to remove color in the production processes of edible oil, industrial oil, petrochemical industry and other industries.

Normal working process: the stirred and mixed clay liquid is pumped into the clay bleaching filter tank by the pump and filled. Under the thrust of the pump, the large particles of clay form a filter cake layer on the surface of the filter screen through circulation. Under the action of the filter cake layer, the fine particles of clay are intercepted to form countless fine channels, so as to intercept more fine suspended solids, Only the clear liquid is allowed to pass through. In the process of filtration, new clay mixture is continuously pumped in to form a new filter cake layer so that the filter cake will not be blocked. In this way, the clear liquid flows to the liquid collecting pipe through the outlet nozzle through the internal channel of the screen, and then flows to the finished product tank through the pipeline under the pressure of the pump.

With the increase of the filtration amount of clay mixture, the thickness of filter cake layer increases, the resistance increases, and the pressure in the tank is high. Stop conveying clay mixture, and start the air compressor. Under the action of air pressure, the materials in the filter cake are gradually pressed out. After about 30 minutes, the filter cake is dried and the input air is stopped. When the pressure is 0, open the butterfly valve, start the vibrator and start slag discharge.

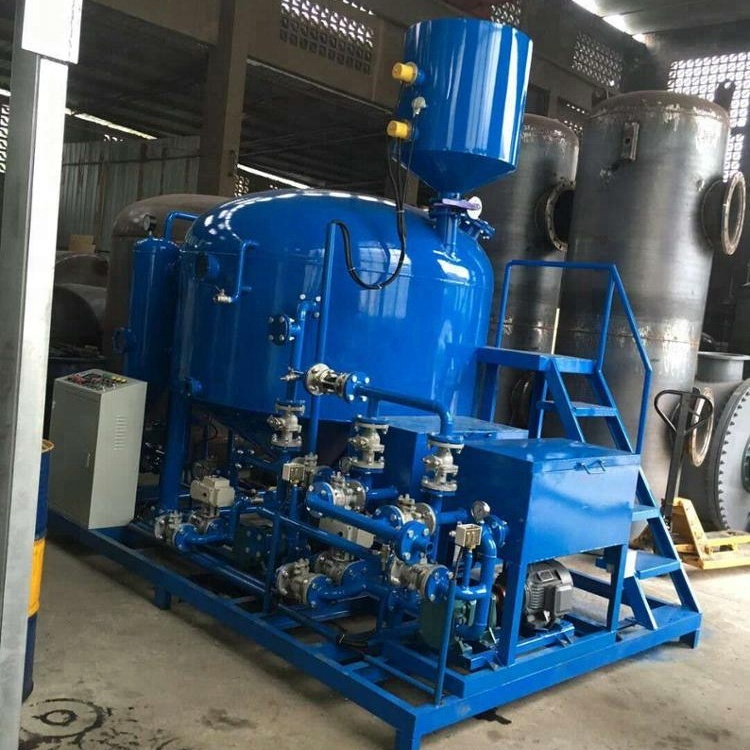

The decolorizing oil filter is mainly composed of lifting frame, tank body, stainless steel screen, vibrating slag discharge device, butterfly valve and transportation support.

Choosing clay decolorization filter can bring at least three benefits to your enterprise:

1. The special stainless steel composite woven screen is used for filtration without filter cloth and filter paper, which reduces the investment of production cost and loss, so that your company can develop better.

2. The vibration slag removal device is used for slag removal without manual slag removal, which reduces the labor intensity and working time of workers, so that workers can work comfortably without complaining.

3. Pipeline connection is adopted to achieve fully closed filtration. The whole filtration process is clean and pollution-free, creating a comfortable and hygienic workshop environment and meeting the requirements of the environmental department.
