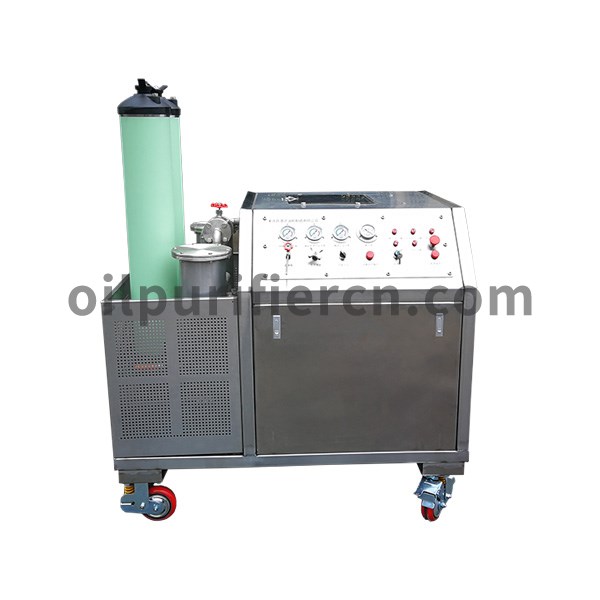

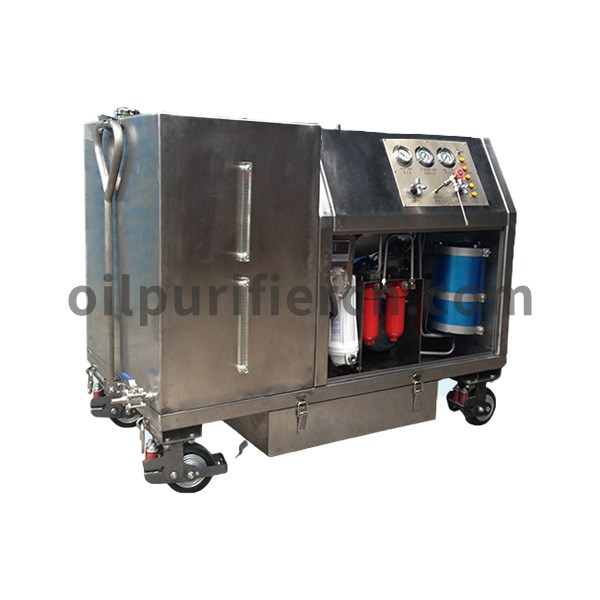

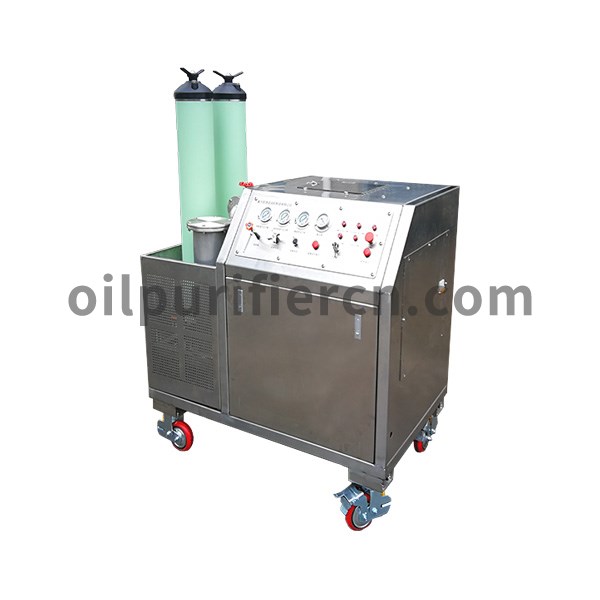

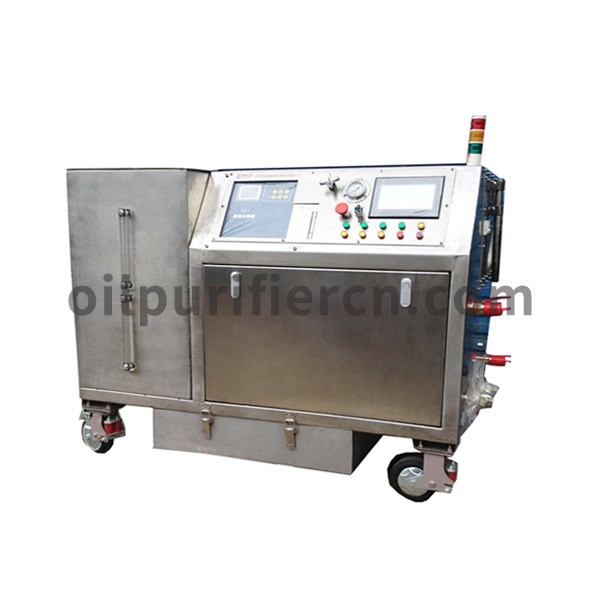

Ⅰ.Fuel Oil Purifier Main Features
fuel oil purifier can regenerate and purify degraded phosphate anti-fire oil, remove the acid, moisture,impurities, gas and color effectively.
fuel oil purifier device can filter by using moisture absorption, vacuum drying ,mechanical filtering ect kind of technologies according to decompression separation and precision filtration principle .our this device is a standalone equipment and no need any other affiliated device, by using the theory of oil-water saturated temperature curve ,vacuum drying to do the high efficiency separation and precision filtering.
Main Features:
1.Application of the advanced technology at home and abroad on similar equipment, so our devices are in the leading position on oil purifier and equipment performance.With the characteristic of acid-removal in anti-fire oil, moisture separation, removal impurities and gas, quick oil cleaning and high precision,etc.
2. Separation system: The application of Swiss Micafil vacuum separation technology, acid-removal tank and vacuum separation tank link together technology, three-dimensional flash evaporation technology. With high efficiency in acid-removal and demulsification capacity, helping the anti-fire oil meets the using standard.
3. This device is equipped with stainless steel and special sealing material to ensure the oil will not leak and not corrupt the materials.
4.Filtration system: The application of filter element from United States, Germany, and the United Kingdom, multi-level precision purify and gradually encryption technology can block the micro impurities, gather large amount of pollutants, long life using, use repeatedly by washing and the new adsorbent acid-removal oil purifier technology, etc.
5.Heating System: The usage of world leading advanced multi S Carbon fiber stainless steel heater, it can heat effectively and evenly, and keep stable temperature while reducing energy consumption.
6.Control system: The optimized design of the control interlock protection device, overpressure alarm shutdown protection and phase-sequence protection are the systems to ensure a long time reliable operation of the whole machine. Besides the automatic pressure alarm shutdown system, automatic overload protection system, automatic constant temperature system, Omron infrared automatic defoaming system, automatic anti-fuel injection protection and many other advanced technology guaranteed the full-automated equipment works safely.
7.Oil transportation system: The usage of professional double arc pump Sterling fluid system technology make the flow up to 12m³/h, and the head up to 60 meters.
Ⅱ. After treatment Fire-resistant Oil Index
Performance Items | Unit | After Treatment Oil Standard |
Mechanical impurities | ％ | None |
Density | （20℃）g/cm3 | 1.13～1.17 |
Kinematic viscosity | mm2/s | 39.1-52.9 |
Acid value | mgkoH/g | ≤0.1 |
Foam characteristic | （24℃）ml | ≤200 |
Resistivity | （20℃）Ω。Cm | ≥6.0×109 |
Granularity | SAE749D | ≤3 Grade |
Cleanness | Class | 5-6 |
