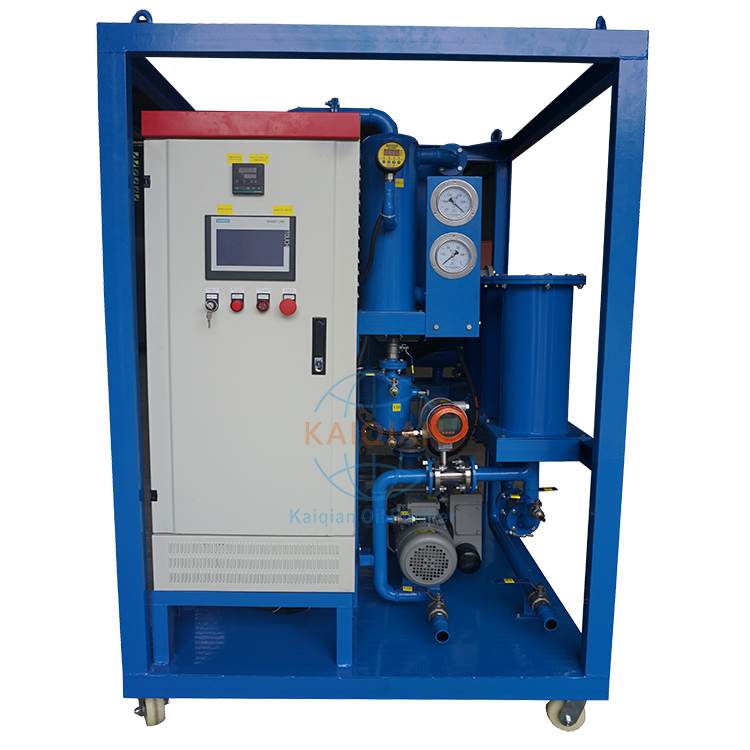

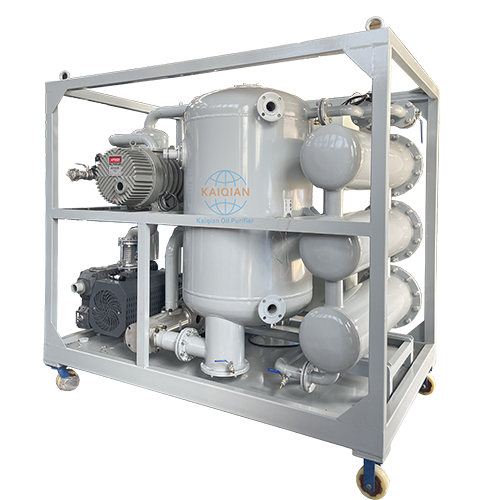

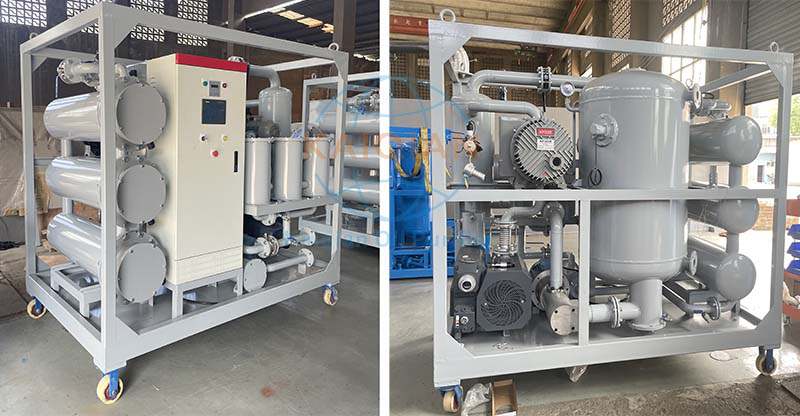

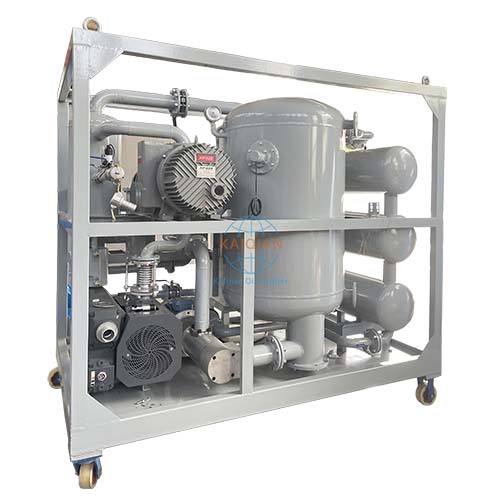

Uhv - transformer oil vacuum oil purification

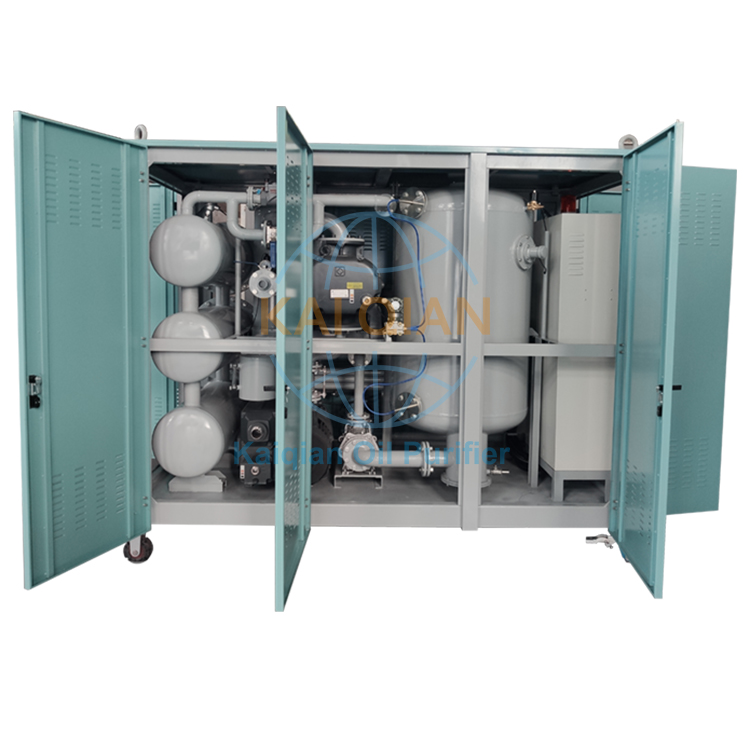

UHV - transformer oil vacuum oil purification is a kind of equipment specially used for transformer oil treatment, its main function is to remove impurities and moisture in transformer oil, improve the insulation performance and cleanliness of the oil, and extend the service life of the transformer. The equipment adopts a two-stage vacuum system to filter oil in a high vacuum state, which can effectively remove gas, water and solid particles in the oil to ensure that the treated oil meets certain cleanliness requirements.

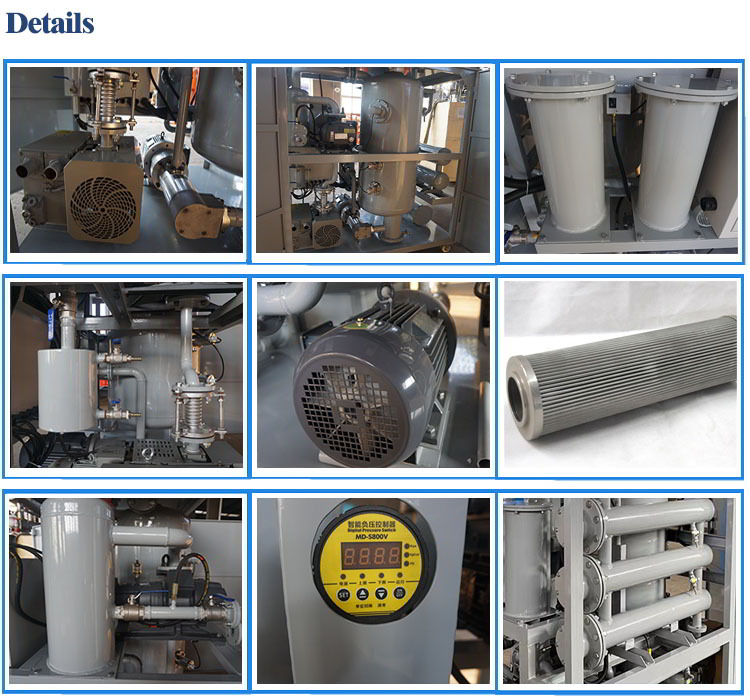

Transformer oil vacuum oil purificationis usually composed of pre-filtration system, heating system, vacuum degassing system, precision oil filter system and so on. In operation, the transformer oil is first heated to a certain temperature, and then the large impurity particles are removed through the pre-filtration system, and then into the two-stage vacuum degassing system, the water and gas in the oil are removed in a high vacuum state, and finally the tiny solid particles and impurities are further removed through the precision oil filter system, and finally the clean and dry transformer oil is obtained.

This equipment is widely used in power systems, railways, industrial and mining enterprises and other fields, can effectively improve the insulation performance of transformers, reduce the aging speed of insulating oil, extend the service life of equipment, and ensure the safe and stable operation of power equipment.

Vacuum oil filter function

(1) Main transformer 35KV-1000KV main transformer oil dehydration, degassing, acetylene removal, removal of impurities.

(2) The main transformer 35KV-1000KV main transformer oil filtration and purification to improve the voltage value.

(3) The main transformer 35KV-1000KV main transformer vacuum drying, GIS vacuum drying.

(4) Transformer oil vacuum oil filter can meet the processing transformer oil 100-500 tons of single transformer insulation oil net, in the installation of the transformer, the need for power transformer drying and vacuum oil filtration. ,

(5) Power transformer drying and oil filtration are necessary procedures for transformer installation and major repair. Transformer drying is to heat the transformer, remove the moisture inside the transformer body, the commonly used method is low voltage and high current electric heating; Filter through the transformer oil vacuum oil filter is to remove impurities and water from the transformer, and the oil filter is commonly used to filter the special transformer oil filter.
